Name: Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware
Brand: Ningbo YokeLink Machinery Co., Limited
Price: 0.10 USD
Availability: InStock

Casa Produtos Ferragens e Fixadores para Linhas de Poste

Drop Forged Wire Rope Clip HDG For Poleline Deadend Hardware

Detalhes do produto:

Lugar de origem:	China
Marca:	YOKELINK

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000 peças
Preço:	USD0.1~USD0.25
Detalhes da embalagem:	Caixa & pálete
Tempo de entrega:	30-45 dias
Termos de pagamento:	T/T
Habilidade da fonte:	50.000 PCes pelo mês

contacto

Descrição de produto detalhada

Material:	Aço carbono	Acabamento:	HDG ou zincagem

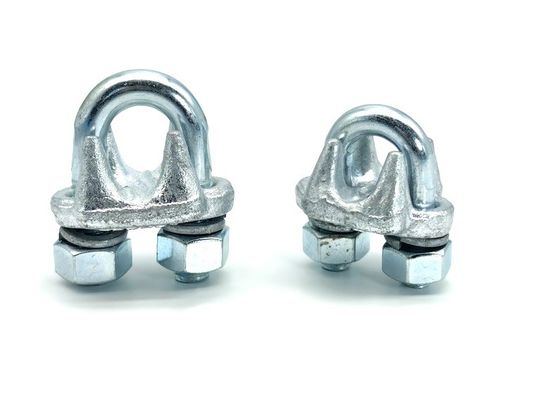

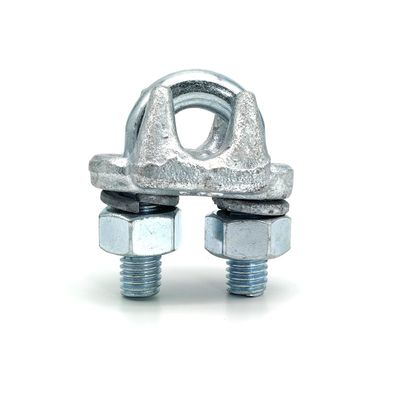

Drop Forged Wire Rope Clip

Yokelink Drop Forged Traditional Style and Fist Grip Style wire rope clips are the strongest and most durable type of clips that we offer. These clips are the best choice in critical suspending, guying, and tie-down applications.

Drop Forging is the process of heating and hammering steel to the shape desired. This allows the steel’s grain structure to be consistent and conform to the shape of the forged item. Cast and malleable wire rope clips may fracture under heavy use due to the steel’s random grain structure created during manufacturing.

Drop Forged Wire Rope Clip Features:

1. A heavy duty means of securing down guys and wire rope.

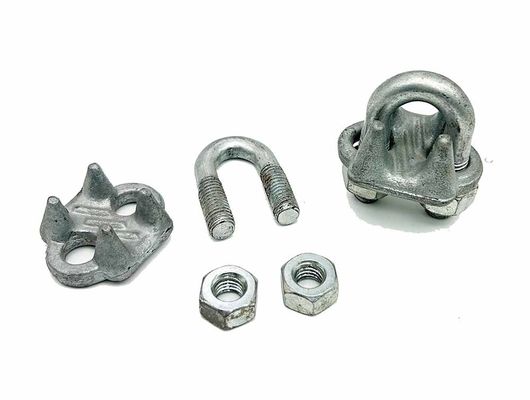

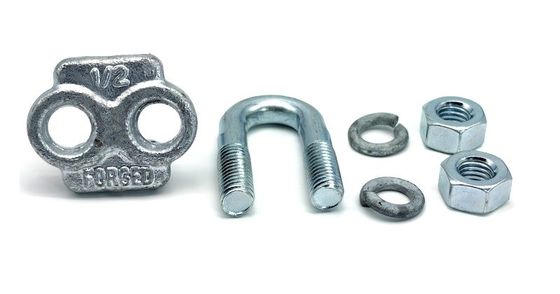

2. Comprised of a Malleable Iron base, “U” bolt, and two hex nuts.

3. All components are hot dip galvanized to meet ASTM Specification A153.

What is Wire Rope Clips?

Wire Rope Clips may also be referred to as Wire Rope Clamps, Cable Clamps, Wire Clamps, Wire Clips, U-Bolts or other local terms. These typically all refer to the same group of products.Wire Rope Clips are used to form a load bearing eye at the end of a wire rope/cable and to connect two cables together using a lap splice.

Yokelink carries a variety of wire rope clips in different materials, styles, and coating types. These wire rope clips are suited for less than permanent applications. They can be secured with common hand tools and are a cost-effective alternative to swaged sleeves, if you only have to make a few assemblies.

There are 3 types of Wire Rope Clips Materials: 316 Stainless Steel, Hot Dipped Galvanized, and Malleable Zinc Plated.

Yokelink Wire Rope Clip Specification

Part No.	Strand Size	D	L	Weight
Part No.	Inch	Inch	Inch	Kg / Pcs
D0514	1/4	1/4-20	1.13	0.079
D05516	5/16	5/16-18	1.23	0.123
D0538	3/8	3/8-16	1.5	0.190
D0512	1/2	1/2-13	1.96	0.315
D0558	5/8	5/8-11	2.14	0.446

Hot Dipped Galvanized Wire Rope Clip

Lower cost than stainless steel

Suited for outdoor environments.

Not as corrosion resistant as stainless steel wire rope clips.

Drop Forged Traditional Style Wire Rope Clip & Drop Forged Fist Grip Style Wire Rope Clip

How does wire rope clips works?

1) Loop Formation:

The wire rope is bent to form a loop, and the loose (dead) end is positioned parallel to the standing (load-bearing) part.

The wire rope clip is installed over both parts of the rope.

2) Proper Placement:

The saddle is placed on the live (load-bearing) side of the rope.

The U-bolt is positioned over the dead end of the rope.

This configuration ensures that the live side of the rope isn't damaged or flattened by the U-bolt.

3) Clamping:

The nuts on the U-bolt are tightened to clamp the rope between the U-bolt and the saddle.

Multiple clips are often used to ensure a secure hold, especially for high-load applications. The number and spacing of clips depend on the rope's diameter.

4) Load Testing:

After installation, the assembly should be load-tested to ensure the clips are tight and the rope is secure.
