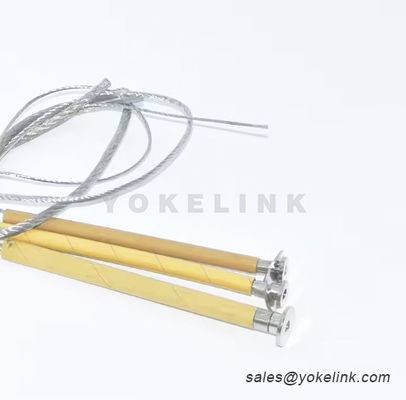

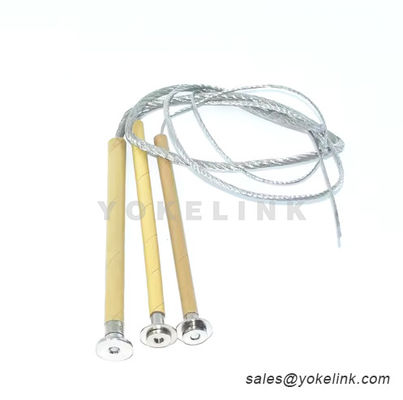

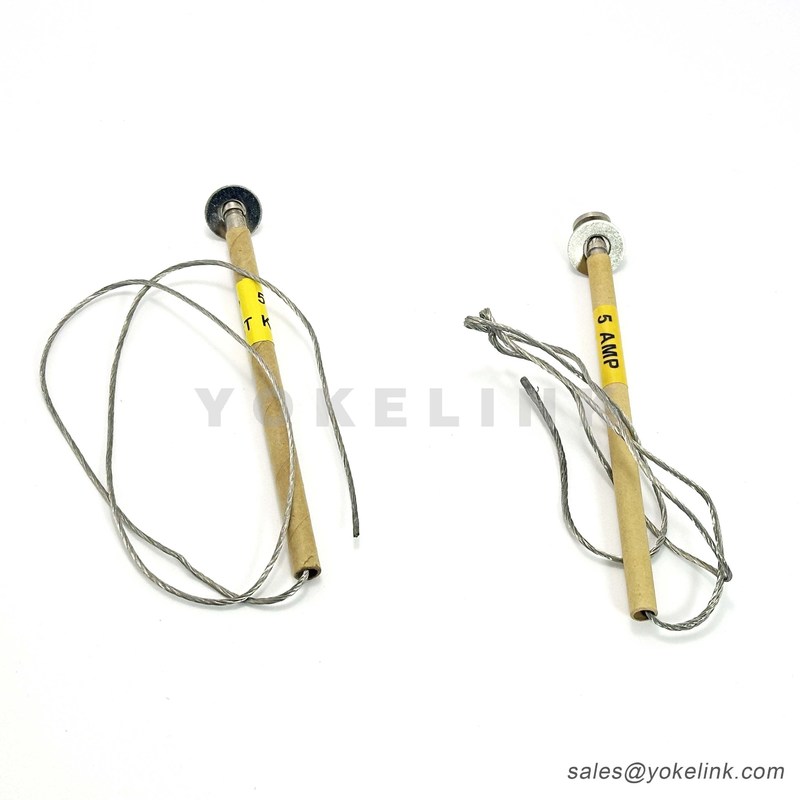

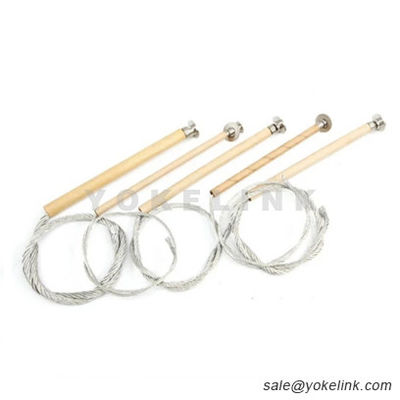

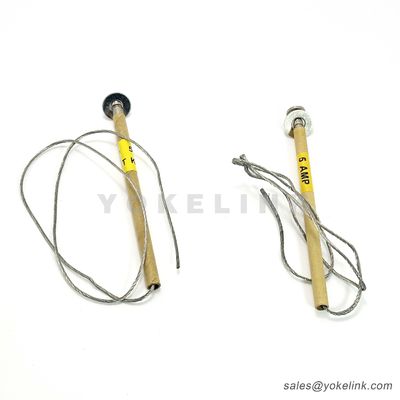

Name: 33kv 3A Various Removable Button Head K Type Fuse Elements Fuse Links
Brand: Ningbo YokeLink Machinery Co., Limited
Price: 1.10 USD
Availability: InStock

Casa Produtos Transformador de Distribuição Monofásico

33kv 3A Various Removable Button Head K Type Fuse Elements Fuse Links

Detalhes do produto:

Lugar de origem:	China
Marca:	Yokelink

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000 unidades
Preço:	$0.1-$3.0
Detalhes da embalagem:	Caixa & pálete
Tempo de entrega:	35-40 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	10.000 unidades por mês

contacto

Descrição de produto detalhada

Fuse Link

Yokelink fuse link is a crucial device in electrical systems. It's designed to melt and break the circuit when excessive current flows, protecting circuits and equipment from overcurrents and short circuits. There are various types, such as T, K, KS,X and SQ fuse links, suitable for different applications. It serves functions like overcurrent protection, short - circuit protection, and fault detection. It ensures the safe operation of electrical systems.

Features:

Fully Compliant with ANSI/IEEE C37.42 - 2016

Compatible with universal style expulsion fuse holders

Individually packed for all weather protection

Type and Current Rating on packaging and fuse for easy identification

Fuse Link Selection

Type K (tube color brown)

Type T (tube color white)

Type KS (tube color light-blue)

Type X (tube color orange) and Type SQ (tube color brown)

Fuse Link Specification:

Fuse Elements

1 through 3 ampere Type T fuse links employ a fusing section consisting of a stainless-steel wire serving as both strain and fuse wire; 6 through 100 ampere, a stainless-steel strain wire and a pure-tin fuse wire in parallel. 140 and 200 ampere T links have a copper element mechanically crimped at one end, soldered at the other end. On overloads or low faults, the solder becomes a fluid and the link separates; on higher fault currents, the link separates when the copper wire melts.

Buy Fuse Link from Yokelink

Yokelink Type T Universal Style Fuse Links are manufactured in complete accordance with ANSI/IEEE C37 Standards and assure system protection because they are precision manufactured. Chance Type T Fuse Links have a Slow Speed rating per the C37.42 Standard and thus are suitable for Coordination with SloFast Fuse Links. Each Fuse Link comes in a protective plastic bag for all weather protection and to facilitate easy opening.
