Name: RN-Type Square Bearing Locking Nut RN-M30*1.5P
Brand: Ningbo YokeLink Machinery Co., Limited
SKU: OEM
Price: 0.30 USD
Availability: InStock

Casa Produtos Acessórios mecânicos

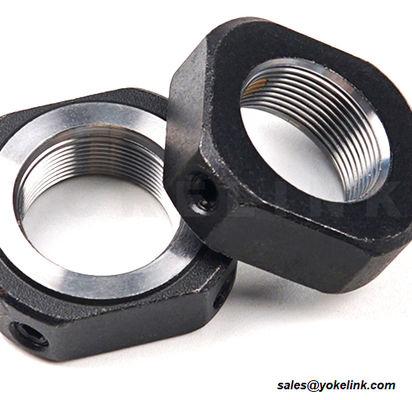

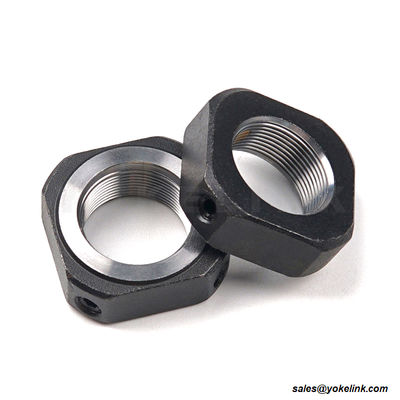

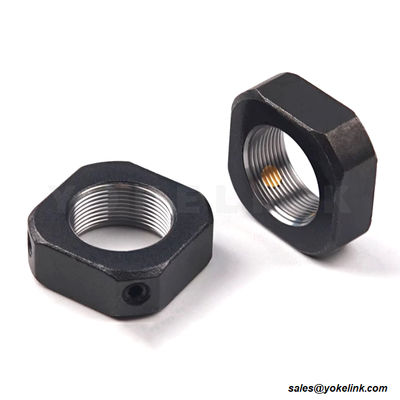

RN-Type Square Bearing Locking Nut RN-M30*1.5P

Detalhes do produto:

Lugar de origem:	China
Marca:	Yokelink
Número do modelo:	OEM

Condições de Pagamento e Envio:

Quantidade de ordem mínima:	1000 unidades
Preço:	$0.3-$1.0
Detalhes da embalagem:	Caixa & pálete
Tempo de entrega:	35-40 dias
Termos de pagamento:	L/C, T/T
Habilidade da fonte:	10.000 unidades por mês

contacto

Descrição de produto detalhada

Material:	Aço Staninless / Aço Carbono	Padrão:	DIN1816, DIN 70852, DINC45, GB812, DIN981, DIN1804
Aplicativo:	Para bucha de fixação, para eixo, para bucha de desmontagem, para usinagem de ranhura de eixo, para

**RN Square Bearing Lock Nut M30*1.5P**

Yokelink RN Square bearing lock nut are bearing accessories for screw drives. RN Square bearing lock nut are used to achieve a defined axial preload in axial angular contact ball bearings for screw drives and axial/radial roller bearings for screw drives.

RN Square bearing lock nut are also used in other applications where high axial forces must be supported and high axial runout accuracy and rigidity are require

RN Square bearing lock nut are used where high axial forces must be supported and high axial runout accuracy and rigidity are required, The thread and the axial face of the locknut in contact with the rolling bearing are produced in a single clamping operation. RN Square bearing lock nut allows very high axial runout accuracy to be achieved. The available precision locknuts AM, ZM and ZMA can be used several times if handled correctly.

RN Square Bearing lock nut Features:

Material: Carbon Steel or Stainless Steel

Thread Tolerance: ISO 4H

Surface Treatment: Alkaline Oxidation (Phosphatizing)

RN Square Bearing Lock Nuts Specification:

1. Bearing locknuts /RN square bearing locking nuts size:

M10*0.75,M12*1.0,M15*1.0,M25*1.5,M55*2.0,M70*2.0...

2. Bearing locknuts / RN square Bearing locking nuts type:

KM/F Type Square ,RTR Type Square,RTF Type Square,RTK Type Square,RTA Type Square,RTRN Type Square,RTKM Type Square

RN Square Bearing Lock Nuts Applications:

lock nuts are widely applied in mechanical systems requiring reliable anti-loosening for rolling bearings. In the automotive field, they fix wheel hubs and engine components, withstanding vibrations from road conditions to ensure safety. For agricultural machinery operating in harsh environments. In construction machinery like excavators and tower cranes, they suit high-vibration scenarios. The power industry uses them in wind turbines to fix bearings against long-term wind-induced vibrations.

Buy RN Square Bearing Lock Nuts From Yokelink

The most secure design is no good when the screw joint breaks down later. Precise analysis of prevailing types of load and properties is therefore very important. This will decide whether locknuts compliant with DIN 981, 6923, 6927 or a self-locking slotted nut with a polyamide ring will ensure the right connection.
